H05V-U

H05V-U

Rigid PVC cable, suitable for protected fixed installations.

Rated voltage 300/500 V
Standards: UNE-EN 50525-2-31, EN 50525-2-31, IEC 60227-3
Rigid PVC cable, suitable for protected fixed installations.

Application

It is indicated for fixed installations in residences, offices, commercial premises, control electrical panels, and outdoor lighting installations (grounding).

Application

It is indicated for fixed installations in residences, offices, commercial premises, control electrical panels, and outdoor lighting installations (grounding).

      Conductor
      Rigid  copper class 1
      UNE -EN 60228 y EN 60228
      Insulation
      PVC TI-1
      UNE-EN 50363-3 y EN 50363-3

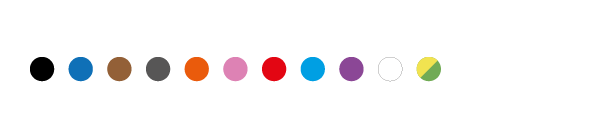

      Colors

      		 Black, Blue, Brown, Gray, Orange, Pink, Red, Turquoise, Violet, White and Yellow/Green
      Rated voltaje Uo/U 300/500 V
      Test voltaje 2.000 V C.A.
      Maximum conductor temperatura 70ºC
      Flame non-propagation
      		 Ok according to UNE-EN 60332-1-2, EN 60332-1-2 e IEC 60332-1-2
      CE
