VOV-K

VOV-K

Flexible PVC cable and overall screen, suitable for areas where electrical noise protection is required.

Rated voltage: 500V
Standards: EN 50288-7
Cables with flexible copper conductors, PVC insulation, aluminum/polyester shield and PVC sheath.

Application

This is a flexible screened cable for signaling and control on industrial machinery facilities. The overall screen make them especially suitable for areas where electrical noise protection is required.

Application

This is a flexible screened cable for signaling and control on industrial machinery facilities. The overall screen make them especially suitable for areas where electrical noise protection is required.

      Conductor
      Flexible electrolytic copper conductor class 5
      EN 60228
      Insulation
      PVC
      EN 50290-2-21

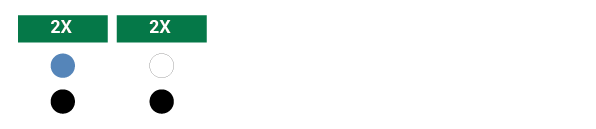

      Core identification



      Blue-Black (numbered)
      White - Black (numbered)
      Screen
      Aluminium/polyester tape + Cu Sn drain (coverage: 100%)


      Outer sheath
      PVC


      EN 50290-2-22
      Color
      Black





      Rated voltage Uo/U 500V C.A.
      Test voltage 2.000 V C.A.
      Maximum conductor temperatura
      		 70ºC
      Flame non-propagation
      		 Ok according to IEC 60332-1-2
