RV-K

RV-K

Flexible PVC cable, suitable for protected fixed installations.

Rated voltage: 0,6/1 kV
Standards: UNE 21123-2, IEC 60502-1
Power electrical cables with flexible copper conductors (class 5), cross-linked polyethylene insultaion and PVC sheath.

Application

Suitable for the transport and distribution of electrical energy in fixed installations, indoor and outdoor, on air supports, in tubes or buried. Especially suitable as power cables in distribution networks, connections, substations, lighting installations, industrial and civil installations in general.



Application

Suitable for the transport and distribution of electrical energy in fixed installations, indoor and outdoor, on air supports, in tubes or buried. Especially suitable as power cables in distribution networks, connections, substations, lighting installations, industrial and civil installations in general.



      Conductor
      Flexible electrolytic copper conductor (class 5)
      UNE-EN 60228 / IEC 60228
      Insulation
      Cross-linked polyethylene DIX-3
      UNE 21123-2

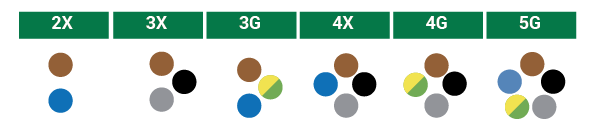

      Core identification
      		 HD 308
      Outer sheath
      PVC typo DMV-18
      UNE 21123-2
      Colour
      Black
      Rated voltage Uo/U 0,6/1 kV
      Test voltage 3500 V C.A.
      Maximum conductor temperature 90ºC
      CPR Construction Eca according to UNE-EN 50575
      Flame retardant OK according to UNE-EN 60332-1 / IEC 60332-1
      Oil and fuel resistant Ok according to ICEA S/73-532
      Water resistant AD7 according to IEC 60364-3
      UV resistant Ok according to UNE 21123-2
