ROC4Z1-K (VFD)

ROC4Z1-K (VFD)

Flexible LSZH cable with copper braid shield, suitable for VFD.

Rated voltage: 0,6/1 kV.
Standard: IEC-60502
Cable specifically designed for powering variable frequency drives (VFD). It features flexible copper conductors, cross-linked polyethylene insulation, dual concentric copper shielding (to control interference and current return), and a halogen-free outer sheath.

Application

Ideal for connecting variable frequency drives and electric motors in industrial environments. Its structure minimizes electromagnetic interference (EMI) and stray currents, protecting sensitive equipment and ensuring the proper functioning of automation systems. Suitable for fixed installations in indoor and protected outdoor settings.

Application

Ideal for connecting variable frequency drives and electric motors in industrial environments. Its structure minimizes electromagnetic interference (EMI) and stray currents, protecting sensitive equipment and ensuring the proper functioning of automation systems. Suitable for fixed installations in indoor and protected outdoor settings.

      Conductor
      Flexible electrolytic copper conductor class 5
      EN 60228
      Insulation
      Cross-linked polyethylene DIX-3

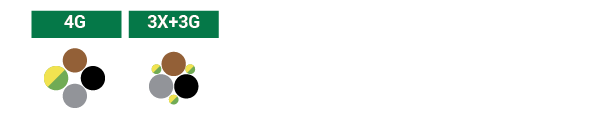

      Core identification

      4G  - Grey + brown + black + yellow/green
      3x + 3G  - Grey + brown + black + yellow/green (3x)
      Screen
      1st screen: Aluminium/polyester tape (coverage: 100%)
      2nd screen: Tinned copper wire braid (coverage > 65%)


      Outer sheath
      Compuesto de poliolefina libre de halógenos
      IEC 60502‐1
      Color
      Black

      Rated voltaje Uo/U 0,6/1 kV
      Test voltaje 3.500 V C.A.
      Maximum conductor temperatura 90ºC
      Flame non-propagation Ok according to IEC 60332‐1‐2
      Fire non-propagation
      		 Ok according to IEC 60332-3-24
      Chemical resistant
      		 Ok according to ICEA S‐73‐532
      UV resistant
      		 Ok according to UNE 21123-4
      CE
